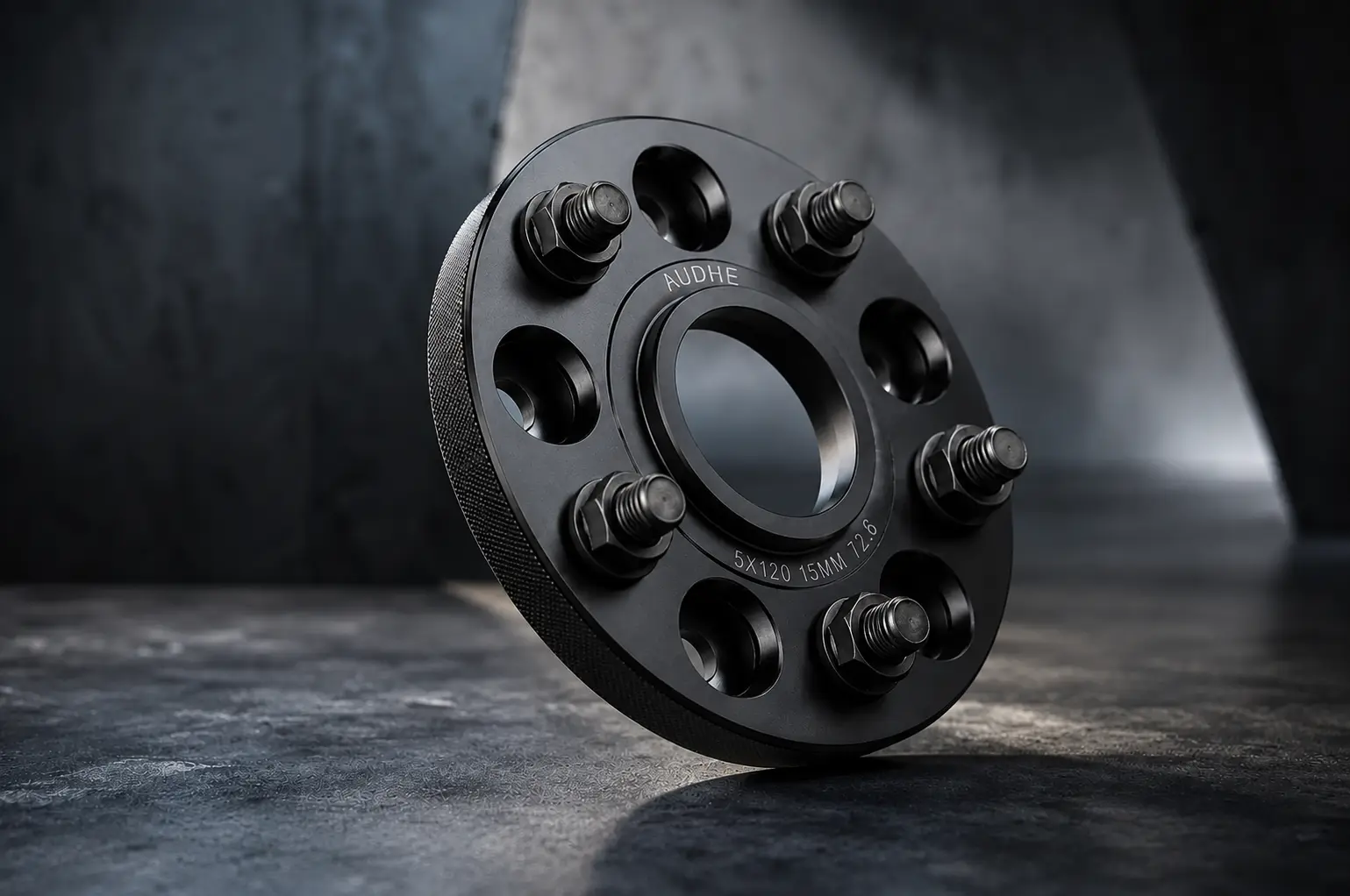

Audhe Industries manufactures precision-forged hub centric wheel spacers and wheel spacer adapters in 6061-T6 and 7075-T6 aluminium alloy, engineered for a wider wheel track, correct fitment and safe on-road performance. Manufactured, supplied and exported from our ISO 9001:2015 certified facility in Coimbatore, India, to automotive aftermarket brands, distributors and OEM buyers worldwide.
Wider track, better corner. Audhe hub centric wheel spacers push your wheels outward so rims and tyres sit flush with the fender line, giving the vehicle a planted, aggressive stance while improving cornering traction and handling stability.
Because each spacer is bored to match the vehicle's hub bore exactly, the wheel is centred on the hub itself rather than on the lug nuts alone — reducing vibration at speed and keeping wheel run-out within tolerance. Wider spacers also open clearance for larger wheels, wider tyres and big-brake kits without rubbing on the strut, control arm or chassis rail.
Every spacer is forged and CNC machined from certified 6061-T6 or 7075-T6 aluminium billet at our in-house Coimbatore facility, paired with ISO 898-1 Grade 12.9 wheel studs and ISO 898-2 Grade 10 lug nuts, and 100% dimensionally inspected before dispatch.
Higher fatigue strength & impact resistance
Bored to the exact vehicle hub bore
Tight, repeatable dimensional accuracy
ISO 898-1 Grade 12.9 studs, 898-2 Grade 10 nuts
Every feature below is built into the spacer at the forging and CNC machining stage, not added afterward — from the alloy billet through to the fastener set supplied with each spacer.
Material

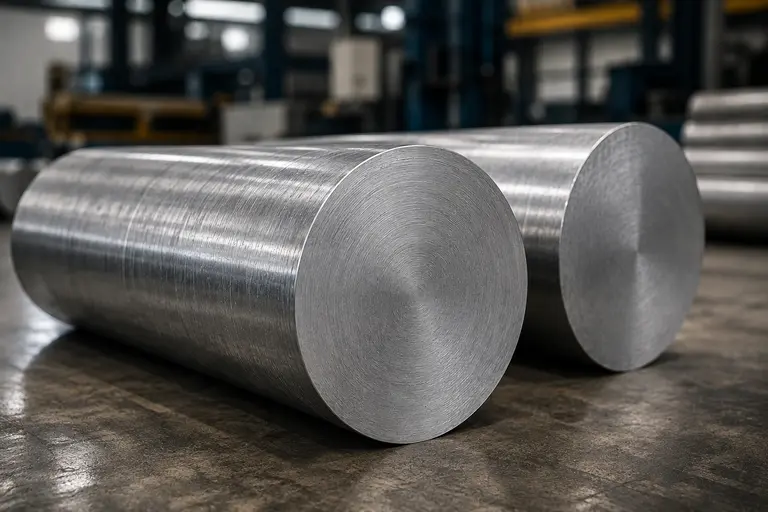

Audhe uses only high-grade forged 6061-T6 or 7075-T6 billet aluminium alloy for every wheel spacer — never cast aluminium, which is more porous and prone to fatigue cracking under repeated load. Forging aligns the metal's grain structure for greater strength and durability.
Fastener

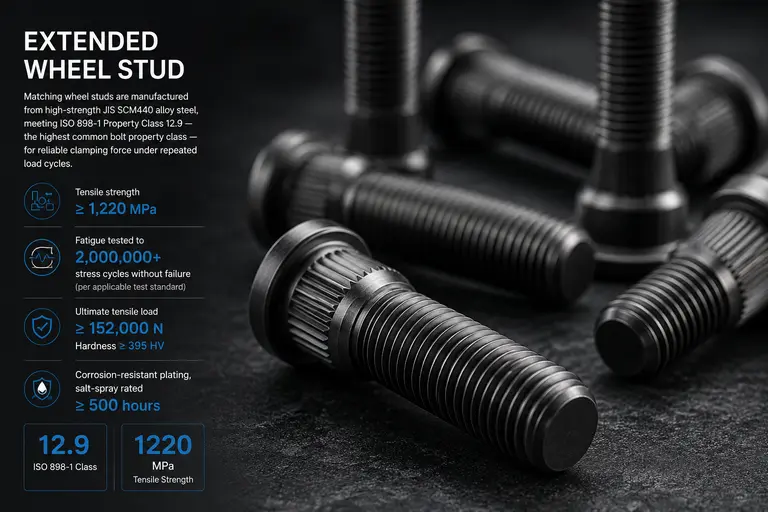

Matching wheel studs are manufactured from high-strength JIS SCM440 alloy steel, meeting ISO 898-1 Property Class 12.9 — the highest common bolt property class — for reliable clamping force under repeated load cycles.
Fastener

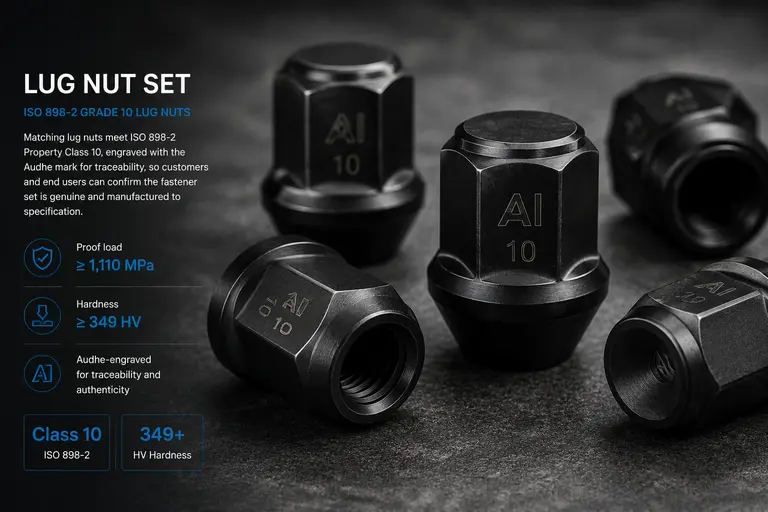

Matching lug nuts meet ISO 898-2 Property Class 10, engraved with the Audhe mark for traceability, so customers and end users can confirm the fastener set is genuine and manufactured to specification.
Design

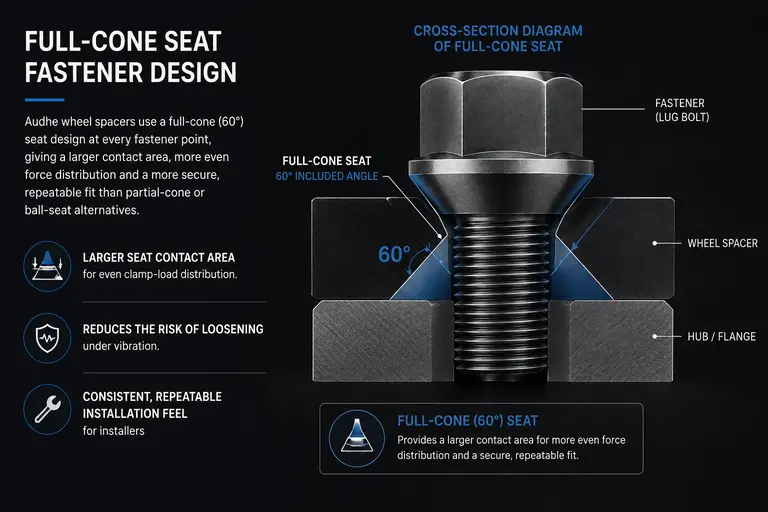

Audhe wheel spacers use a full-cone (60°) seat design at every fastener point, giving a larger contact area, more even force distribution and a more secure, repeatable fit than partial-cone or ball-seat alternatives.
Design

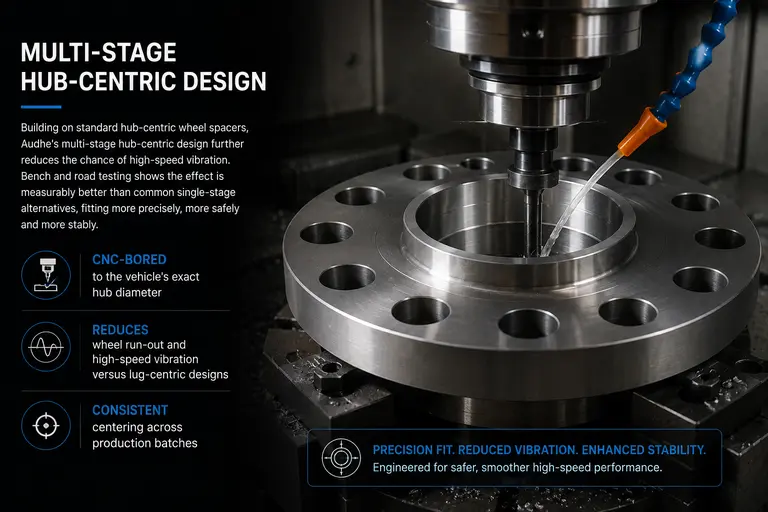

Building on standard hub-centric wheel spacers, Audhe's multi-stage hub-centric design further reduces the chance of high-speed vibration. Bench and road testing shows the effect is measurably better than common single-stage alternatives, fitting more precisely, more safely and more stably.
Finish

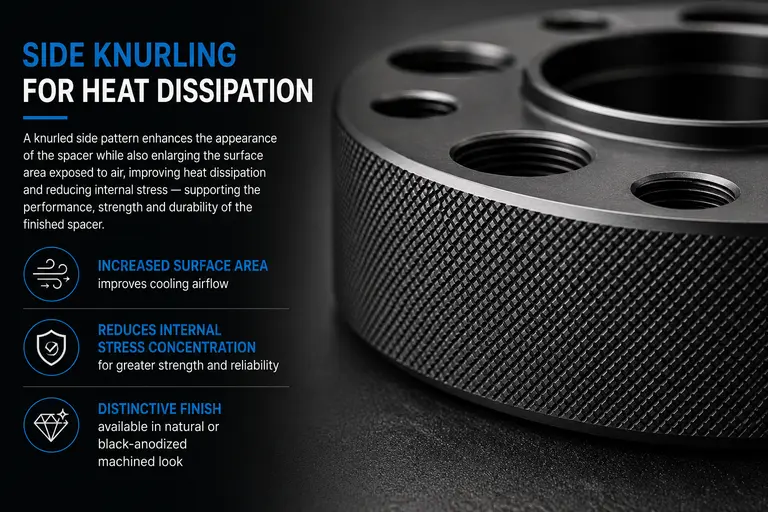

A knurled side pattern enhances the appearance of the spacer while also enlarging the surface area exposed to air, improving heat dissipation and reducing internal stress — supporting the performance, strength and durability of the finished spacer.
Serviceability

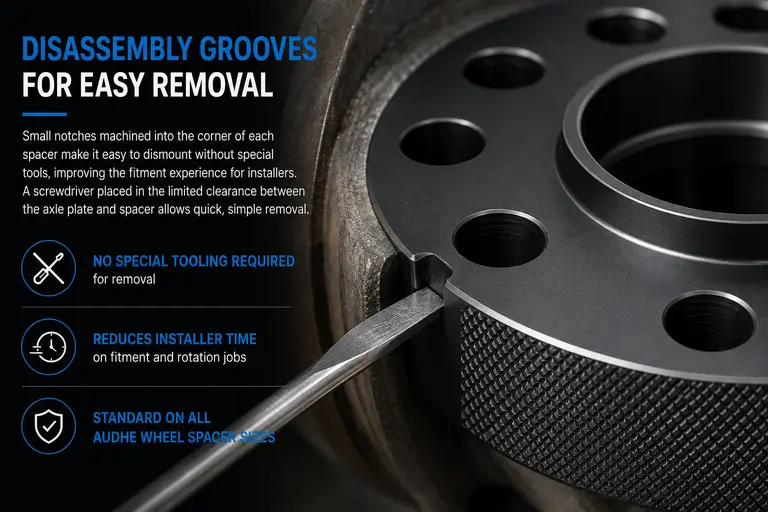

Small notches machined into the corner of each spacer make it easy to dismount without special tools, improving the fitment experience for installers. A screwdriver placed in the limited clearance between the axle plate and spacer allows quick, simple removal.
Standard specification range for Audhe forged hub centric wheel spacers. Custom bolt patterns, center bores, thicknesses and finishes are manufactured to order — share your requirement for a tailored specification and quote.
| Specification | Detail |
|---|---|
| Product Name | Hub Centric Wheel Spacer / Wheel Spacer Adapter |
| Material | Forged 6061-T6 or 7075-T6 aluminium alloy |
| Tensile Strength | ≥ 310 MPa (6061-T6) / ≥ 572 MPa (7075-T6) |
| Manufacturing Process | Closed-die forging + CNC precision machining |
| Wheel Stud Material & Grade | JIS SCM440 alloy steel, ISO 898-1 Property Class 12.9 |
| Wheel Stud Tensile Strength | ≥ 1,220 MPa |
| Lug Nut Grade | ISO 898-2 Property Class 10, hardness ≥ 349 HV |
| Fastener Seat Type | Full-cone (60°) seat |
| Centering Method | Multi-stage hub-centric bore |
| Available Thickness | 3 mm – 50 mm (custom thickness on request) |
| Bolt Pattern (PCD) Range | 4×100 to 6×139.7 (custom patterns available) |
| Center Bore Range | 54.1 mm – 110 mm (custom bore machining available) |
| Surface Finish | Machined natural, anodized or black-anodized |
| Hardware Included | Matched set of extended wheel studs and lug nuts |
| Quality Standard | ISO 9001:2015 certified manufacturing facility |
| Inspection | 100% dimensional inspection; OES alloy verification |
| Certification Supplied | Certificate of Conformance (COC); Material Test Certificate (MTC) & PPAP available on request |
| Customization | OEM / private-label branding, custom sizes, bolt patterns & finishes |
| Country of Origin | Made in India |
| Minimum Order Quantity / Lead Time | Available on request — contact for prototype and bulk order lead times |
From daily-driven passenger cars to motorsport and export OEM programs, Audhe wheel spacers and wheel spacer adapters are manufactured to suit a wide range of vehicle platforms and buyer requirements.
Every incoming aluminium batch is spectrometer-checked before it enters production.
Bolt pattern, center bore, thickness and run-out checked on every batch.
Manufactured under a documented, audited quality management system.
PPAP and material test certificates supplied on request for OEM and export orders.
A single Coimbatore facility handles forging, CNC machining, fastener sourcing to ISO 898 grades, inspection and export documentation — so you deal with one manufacturing partner, not a chain of subcontractors.
Audhe is expanding its forged automotive component range beyond wheel spacers. The following are in development or available through our existing manufacturing capability — enquire for availability and lead time.
ISO 898-1 Property Class 12.9 forged wheel bolts, matched to Audhe wheel spacer thicknesses and custom vehicle fitments.
ISO 898-2 Property Class 10 lug nuts, engraved for traceability, sold as matched sets with Audhe wheel spacers.
Precision hub rings for vehicle-to-wheel bore adaptation, machined in-house on the same CNC lines as our wheel spacers.
Bring your own bolt pattern, branding and packaging — Audhe forges and machines to your specification for private-label and OEM supply programs.
Enquire NowWheel spacers are forged and machined using the same in-house capabilities behind our other precision components:
Send us your vehicle fitment requirement, drawing or sample — our engineering team will confirm the right alloy grade, thickness and bolt pattern, and provide a competitive quote within 24 hours. Prototype to bulk volume, standard to fully custom, India to 30+ export markets.
