Gravity Die Casting
If you're in manufacturing or engineering, you've likely heard of gravity die casting — but how much do you really know about it? Gravity die casting is a crucial process in modern manufacturing that allows for the efficient production of high-quality metal parts. This method uses the force of gravity to fill moulds with molten metal, making it a reliable and cost-effective choice for a wide range of industries.
At Audhe Industries, we have over 10 years of experience in this field, ensuring precision and quality in every project. This guide covers the gravity casting process, its benefits, common materials used, applications across industries, comparison with competing methods, and how to optimise your operations.

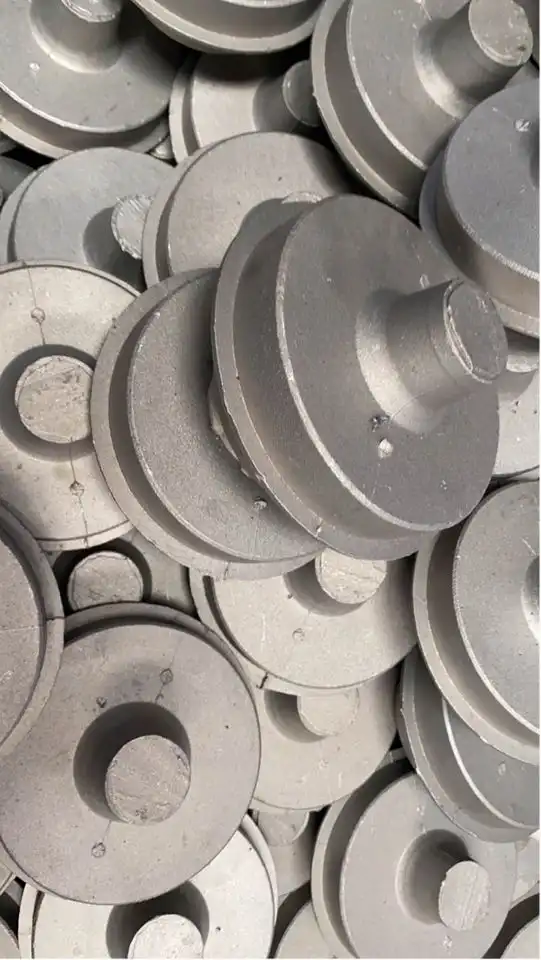

1What is Gravity Die Casting?
Gravity die casting (GDC) is a manufacturing process that involves pouring molten metal into a permanent mould under the force of gravity alone. Unlike pressure die casting — which injects molten metal at high pressure — gravity casting relies solely on gravity to fill the mould cavity.
Typically, the process involves preheating a steel or iron mould to enhance casting quality and promote controlled solidification. The primary materials used include aluminium alloys, zinc and copper alloys — favoured for their excellent mechanical properties and ability to create detailed shapes with good surface finish.
Gravity die casting is distinct from sand casting (which uses expendable moulds), permanent mould casting variations and pressure die casting. Its simplicity, combined with the durability of reusable metal tooling, makes it an attractive and cost-effective option for medium to high-volume production of strong, precise metal components.
2The Gravity Die Casting Process — Step by Step
Preparing the Mould
The mould is cleaned and inspected before each cycle. Steel or iron are used as mould materials for their durability and heat resistance. A release agent (mould coat) is applied to the die surface to facilitate easy part removal and to protect the die surface — extending tool life and improving surface finish on the casting.
Metal Melting and Pouring
The chosen metal is melted in a furnace to the appropriate temperature. Molten metal is then poured steadily into the mould — gravity draws it into the cavity. Careful control of pouring rate, metal temperature and die temperature is required to prevent defects such as air pockets, cold shuts or premature solidification.
Cooling and Solidification
As the mould fills, the molten metal cools and solidifies. The cooling rate directly affects the mechanical properties of the final casting — a slower, more controlled solidification (compared to HPDC) typically produces a denser microstructure with fewer gas-related defects. Cooling channels or external water cooling can be used to regulate die temperature between cycles.
Ejection and Finishing
After solidification, the die halves are separated and the cast part is removed — using ejector pins or by simply splitting the mould. The part then undergoes finishing: trimming excess material (gates and risers), shot blasting, CNC machining to achieve final tolerances, and surface treatment such as anodising or powder coating if required.
3Key Advantages of Gravity Die Casting
Cost-Effective for Medium to High Volume
GDC has lower tooling costs than pressure die casting — making it economical for medium to high production volumes. The reusable permanent moulds amortise quickly, reducing per-part cost at scale without the high capital investment of HPDC machinery.
High Precision and Surface Finish
Gravity casting allows for tight tolerances and excellent surface finishes — suitable for precision applications like brake callipers, pump housings and structural automotive components. Surface quality is generally better than sand casting without the post-processing cost gap.
Durability and Strength of Castings
GDC parts are known for their strength and internal soundness. The controlled solidification under gravity — without the rapid fill turbulence of HPDC — produces a denser microstructure with fewer gas porosity defects, resulting in stronger mechanical properties for structural applications.
Eco-Friendly Manufacturing
Gravity die casting generates less material waste compared to sand casting. Reusable steel moulds eliminate expendable mould waste, and the metals used (aluminium, zinc) are highly recyclable. Gates and risers return directly to the furnace, minimising raw material consumption.
Good for Thicker-Walled Parts
Unlike HPDC which excels at thin walls, GDC is well-suited to parts with thicker cross-sections — where the slower, gravity-fed fill and controlled cooling produce better structural integrity than would be achievable with high-speed pressure injection.
Lower Porosity Than Pressure Casting
The calm, gravity-driven fill minimises turbulence and air entrapment — producing castings with lower gas porosity than HPDC in many applications. This makes GDC castings more suitable for heat treatment and welding where porosity would cause problems.
4Challenges of Gravity Die Casting
Complexity in Large or Intricate Parts
Producing very large or complex shapes can be challenging because gravity alone must drive metal into all sections of the mould. Thin walls, long channels and deeply recessed features may not fill completely — requiring careful gating design, mould coating optimisation and pre-heating to ensure complete cavity fill without defects.
Mould Wear and Maintenance
Permanent moulds experience thermal fatigue over repeated cycles of heating (filling) and cooling (solidification). Regular maintenance — die surface inspection, heat checking repair and recoating — is essential. Mould life varies from 10,000 to 50,000+ shots depending on alloy, part geometry and operating conditions.
Limited Materials Compatibility
Not all alloys work well with GDC. Materials with very high melting points (e.g. steel, titanium) cause rapid die wear. Some aluminium alloys with low fluidity may not fill complex moulds reliably. Material selection must balance castability, mechanical properties and compatibility with the permanent mould process.
Slower Cycle Times than HPDC
Because gravity fill is slower than high-pressure injection and solidification times for thicker-walled parts are longer, GDC has slower cycle times than HPDC. This limits its economic advantage for very high-volume thin-walled part production — where HPDC's speed advantages outweigh its higher tooling cost.
5Applications of Gravity Die Casting by Industry
Automotive
Engine blocks, cylinder heads, transmission cases, structural components, brake callipers and engine mounts — applications requiring strength, dimensional consistency and good mechanical properties. GDC's internal soundness makes it well-suited for safety-critical automotive parts.
Aerospace and Aviation
High-performance structural components that demand strength, precision and reliability. GDC produces near-net-shape parts with lower porosity — important for aerospace applications where structural integrity cannot be compromised and heat treatment of castings is often required.
Industrial Equipment
Parts for pumps, valves, compressors, construction equipment and heavy machinery — benefiting from the robustness and dimensional stability that gravity castings provide. The process handles the thicker cross-sections common in industrial equipment more effectively than HPDC.
Consumer Goods and Electronics
Mobile phone cases, laptop components, power tool housings and electrical enclosures — lightweight yet strong components where GDC's surface finish quality and dimensional accuracy deliver the precision consumer electronics demand.
Renewable Energy
Components for wind turbines, solar mounting systems and other energy infrastructure rely on GDC for structural reliability, corrosion resistance and manufacturing efficiency. Aluminium GDC parts provide the strength-to-weight performance that energy systems require.
Medical and Industrial Instruments
Housings for diagnostic equipment, precision instrument bodies and medical device enclosures — where the combination of dimensional accuracy, good surface finish and the ability to machine GDC parts to final tolerances meets demanding specification requirements.
6Materials Used in Gravity Die Casting
GDC primarily uses metals that offer good castability, excellent mechanical properties and compatibility with permanent steel or iron moulds. Material selection depends on the required strength, weight, corrosion resistance and operating temperature of the final part.
Aluminium Alloys
The most widely used material in GDC. Lightweight with good corrosion resistance, excellent strength-to-weight ratio and high thermal conductivity. Common alloys include LM6 (A413), LM25 (A356) and LM24 — each optimised for different combinations of castability, strength and machinability.
Zinc Alloys
Known for high precision, excellent dimensional stability and good surface finish. Lower melting point than aluminium — compatible with GDC at appropriate temperatures. Used for smaller, intricate parts requiring tight tolerances and good mechanical properties at lower cost.
Copper Alloys (Brass and Bronze)
Superior mechanical properties, excellent wear resistance and good thermal/electrical conductivity. More expensive than aluminium or zinc — used for specialist applications like bearing housings, marine components, electrical connectors and valve bodies requiring premium performance.
Cast Iron
Often used in heavy-duty applications requiring high strength and wear resistance — engineering castings, machinery components and structural parts. Cast iron in GDC is less common but viable for specific applications requiring its characteristic hardness and compressive strength.
Stainless Steel (Specialist)
Less common in GDC due to high melting temperature causing rapid die wear, but used for specific applications requiring corrosion resistance and high strength — chemical processing equipment, food industry components and medical device housings where stainless properties are essential.
7Gravity Die Casting vs. Other Casting Methods
Sand casting has higher material waste per part and less dimensional precision — requiring more post-machining. It can handle very large parts and virtually any metal, but GDC provides better surface finish, tighter tolerances and lower per-part cost at medium to high volumes thanks to the reusable die.
Pressure die casting is faster and can produce thinner walls — but requires significantly higher tooling and machine investment. HPDC is superior for very high-volume thin-walled parts. GDC is generally more cost-effective for medium volumes, thicker-walled parts, and where lower internal porosity is required for structural integrity or heat treatment.
Permanent mould casting (without applied pressure) is effectively a variant of gravity die casting. Minor process differences relate to tilt-pouring or bottom-filling arrangements. Both use reusable metal moulds; permanent mould casting can deliver superior surface finish in some configurations but at potentially higher operational complexity.
Low-pressure die casting (LPDC) uses low gas pressure to push metal upward into the die from a sealed furnace — producing very dense, low-porosity castings ideal for automotive wheels and large structural parts. LPDC offers advantages for complex shapes and larger parts but involves higher initial equipment and tooling costs than standard GDC.
8How to Optimise Your Gravity Die Casting Process
Mould Design and Maintenance
Design moulds for optimal metal flow — strategic gating location, adequate venting and properly sized risers prevent cold shuts and shrinkage. Regular inspection and maintenance of die surfaces extends mould life significantly. Address heat checking early before it affects part quality.
Temperature Control
Monitor and control both metal temperature and die temperature throughout each cycle. Too low a die temperature causes premature solidification and cold shuts; too high reduces die life and extends cycle time. Consistent thermal management is the single biggest driver of consistent casting quality.
Post-Casting Processes
Streamline finishing processes — trimming, shot blasting, CNC machining and surface treatment — with well-planned production flow. Efficient handling between casting and finishing minimises cooling damage and reduces work-in-progress inventory. Track scrap by defect type to identify and address root causes systematically.
9Future Trends in Gravity Die Casting
Automation and Robotics
Automation is improving GDC efficiency by reducing labour costs while enhancing precision and consistency. Robotic pouring, part extraction, coating application and in-line quality inspection are increasingly common — particularly in high-volume automotive GDC operations. Advanced casting machines with servo-controlled tilting enable tilt-pour GDC with improved fill control.
Sustainability Initiatives
The industry is adopting eco-friendly practices — using recycled aluminium (which requires 95% less energy than primary smelting), reducing mould coat VOC emissions, improving process energy efficiency and minimising scrap through better process control. Circular economy principles are becoming central to GDC operations.
Advanced Materials Science
Researchers are developing new aluminium alloys with enhanced strength, improved fluidity and better compatibility with GDC process parameters — broadening the range of parts achievable. High-silicon alloys for EV thermal management, and new Al-Mg alloys for structural lightweighting, are active development areas relevant to GDC.
Conclusion
Gravity die casting is a valuable method in modern manufacturing that offers numerous advantages — cost-effectiveness, precision and durability — across automotive, aerospace, industrial, electronics and renewable energy sectors.
With over 10 years of experience at Audhe Industries, we are well-equipped to assist you with your GDC needs. From alloy selection and mould design through production and post-processing, our team ensures every casting meets your specifications. If you're considering gravity die casting for your manufacturing projects, we're here to help.
?Frequently Asked Questions
What is gravity die casting?
How does gravity die casting work?
What are the benefits of gravity die casting?
- High precision: Tight tolerances and good surface finish for medium-volume production
- Cost-effective: Lower tooling cost than HPDC; ideal for medium to high volumes
- Good structural integrity: Lower porosity than HPDC — suitable for heat treatment and welding
- Durability: Strong, long-lasting metal parts with good mechanical properties
- Eco-friendly: Reusable moulds and recyclable metals reduce waste
What materials are used in gravity die casting?
- Aluminium alloys (LM6, LM25, LM24) — lightweight, corrosion-resistant, the most widely used
- Zinc alloys — high precision and dimensional stability for smaller intricate parts
- Copper alloys (brass and bronze) — superior mechanical properties and conductivity for specialist applications
- Cast iron — heavy-duty applications requiring strength and wear resistance
- Stainless steel — specialist use where corrosion resistance is paramount
What is the difference between gravity die casting and pressure die casting?
What industries use gravity die casting?
- Automotive: Engine blocks, cylinder heads, brake callipers, transmission cases, structural components
- Aerospace: High-performance structural parts, brackets, housings
- Industrial machinery: Pumps, valves, compressor housings, construction equipment parts
- Consumer electronics: Smartphone cases, laptop components, device housings
- Renewable energy: Wind turbine components, solar mounting hardware
Can gravity die casting be used for large parts?
How does mould design affect gravity die casting quality?
What are the limitations of gravity die casting?
- Part complexity: Very thin walls or highly intricate features may not fill reliably with gravity alone
- Mould wear: Reusable moulds experience thermal fatigue and require maintenance or eventual replacement
- Material compatibility: High-melting-point metals cause rapid die wear — limiting GDC to lower-melting alloys
- Cycle time: Slower than HPDC — not optimal for extremely high-volume thin-walled production
Is gravity die casting environmentally friendly?
